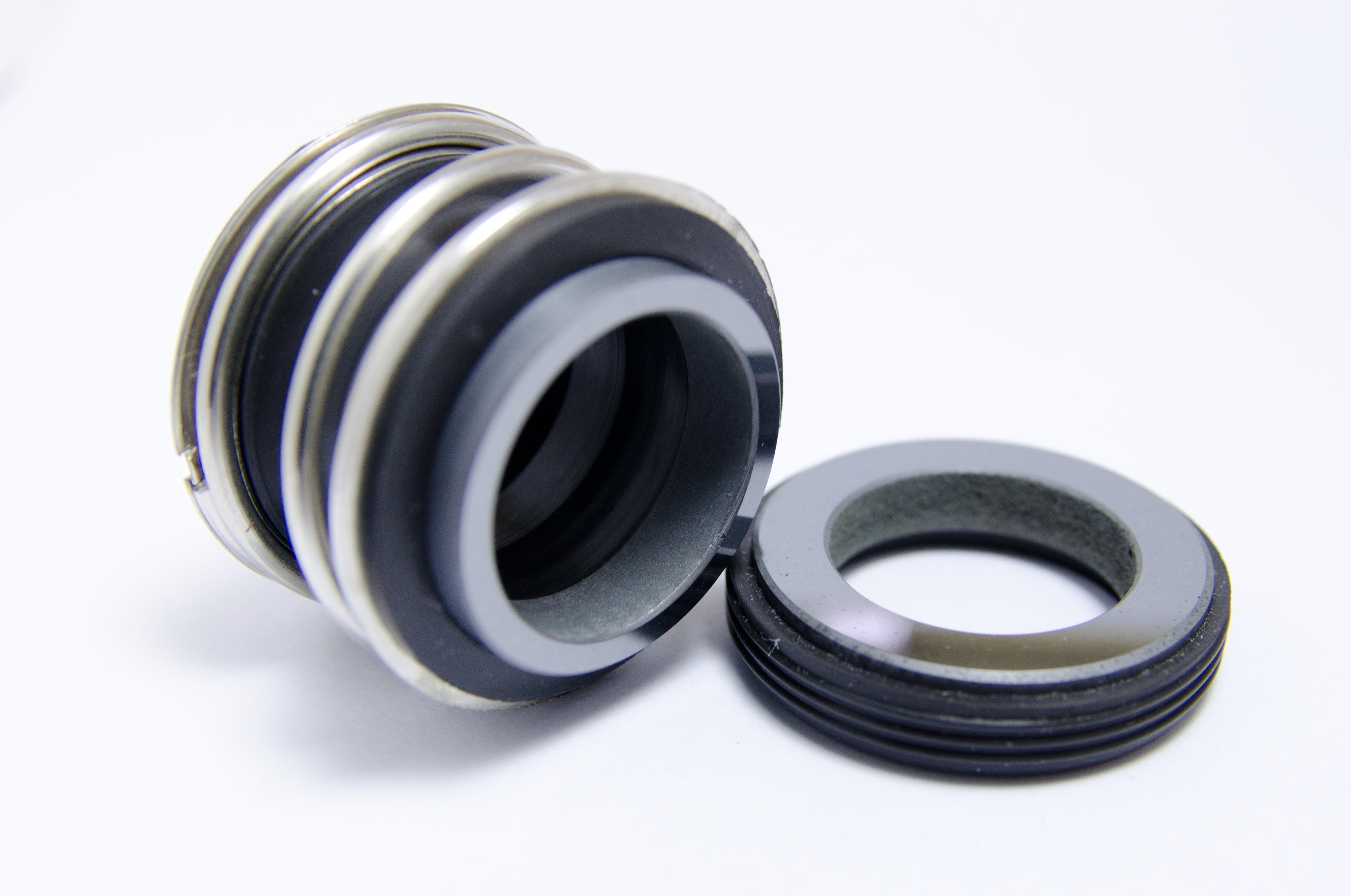

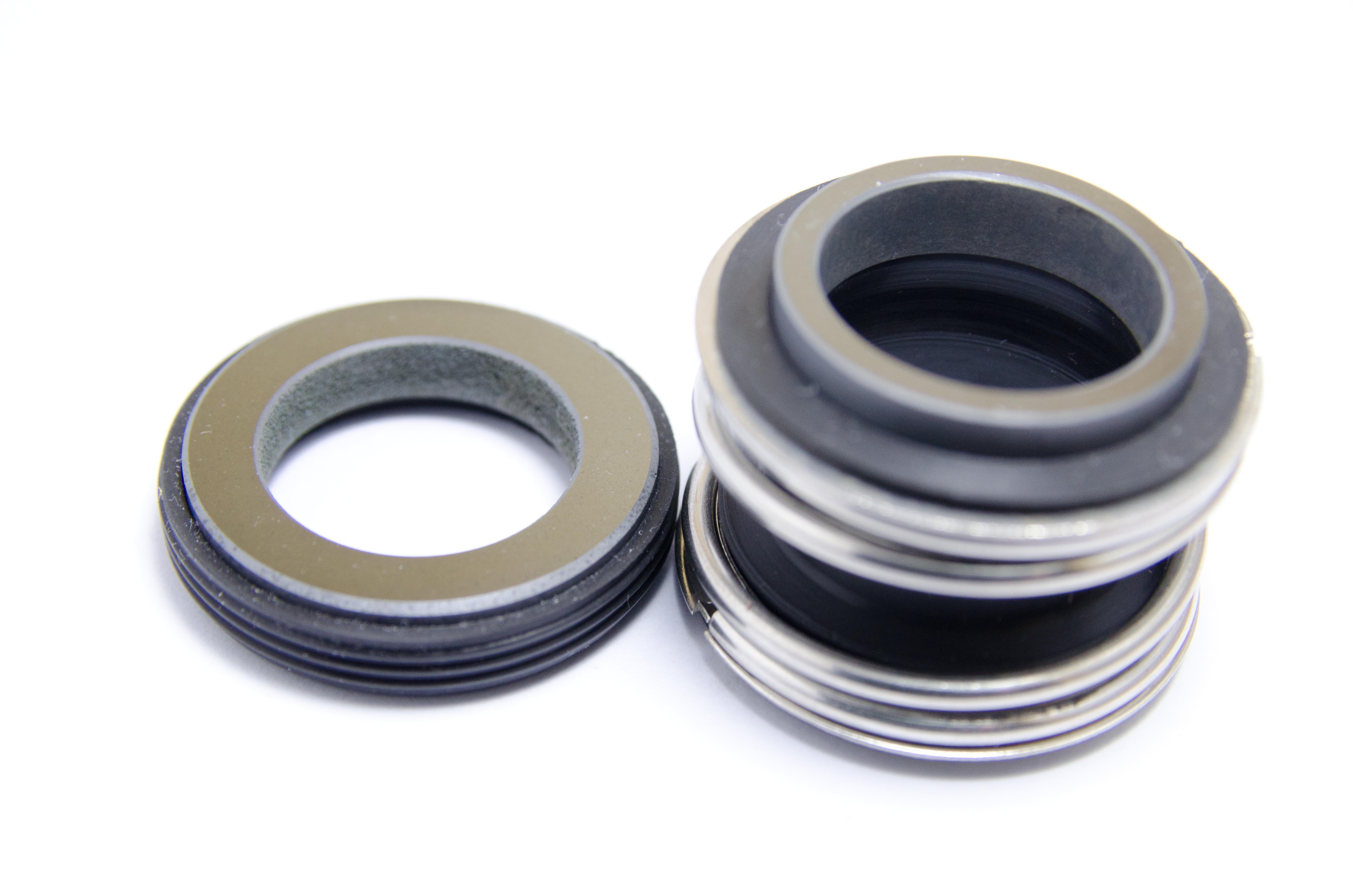

d	D3	D7	D12	D16	L1		L2	L3	L4	L9	L14	L28	L29
10	22	21	19.2	24.6	14.5		25	25.9	33.4	10	6.5	6.5	9
12	24.5	23	21.6	27.8	15		25	25.9	33.4	10	5.5	6.5	9
14	28	25	24.6	30.95	17		25	28.4	33.4	10	5.5	6.5	10.5
15	28	27	24.6	30.95	17		25	28.4	33.4	10	6.5	6.5	10.5
16	28	27	28	30.95	17		25	28.4	33.4	10	7.5	6.5	10.5
18	31.5	33	30	34.15	19.5		25	30	37.5	11.4	8	7.5	10.5
19	36.5	35	35	34.15	21.5		25	30	37.5	11.4	7.5	7.5	10.5
20	36.5	35	35	35.7	21.5		25	30	37.5	11.4	7.5	7.5	10.5
22	36.5	37	35	37.3	21.5		25	30	37.5	11.4	7.5	7.5	10.5
24	42	39	38	40.5	22.5		25	32.5	42.5	11.4	7.5	7.5	10.5
25	42	40	38	40.5	23		25	32.5	42.5	11.4	7.5	7.5	10.5
28	48.5	43	42	47.65	26.5		33	35	42.5	11.4	9	7.5	12
30	48.5	45	45	50.8	26.5		33	35	42.5	11.4	10.5	7.5	12
32	53	48	48	50.8	27.5		33	35	47.5	11.4	10.5	7.5	12
33	53	48	50	54	27.5		33	35	47.5	11.4	11	7.5	12
35	56.5	50	52	54	28.5		33	35	47.5	11.4	11	7.5	12
38	58.5	56	55	57.15	30		33	36	46	14	10.5	9	12
40	61.5	58	58	60.35	30		33	36	46	14	10.8	9	12
42	65	61	62	63.5	30		36	41	51	14	12	9	12
43	65	61	62	63.5	30		36	41	51	14	12	9	12
45	67.5	63	64	63.5	30		36	41	51	14	11.5	9	12
48	70	66	68.4	66.7	30.5		36	41	51	14	11.5	9	12
50	73.5	70	69.3	69.85	30.5		38	41	50.5	15	11.5	9.5	13.5
53	78	73	72.3	73.05	33		36.5	41	59	15	12.5	11	13.5
55	80.5	75	75.4	76.2	35		36.5	41	59	15	13.5	11	13.5
58	85	78	78.4	79.4	37		41.5	41	59	15	13.5	11	13.5
60	88	80	80.4	79.4	38		41.5	41	59	15	13.5	11	13.5
65	93	85	85.4	92.1	40		41.5	49	69	15	13	11	16
68	96	90	91.5	95.25	40		41.2	49	68.7	18	13.7	11.5	16
70	99	92	92	95.25	40		48.7	49	68.7	18	13	11.5	16
75	106.5	97	99	101.6	40		48.7	52	68.7	18	14	11.5	16
80	111.5	105	104	114.3	40		48	56	78	18.3	15	12	20
85	119.5	110	109	117.5	41		46	56	76	18.3	15	14	20
90	126.5	115	114	123.85	45		51	59	76	18.3	15	14	20
95	131.5	120	120.3	127	46		51	59	76	17.3	16	14	20
100	136.5	125	123.3	133.35	47		51	62	76	17.3	16	14	20

Operation Conditions：

Temperature：-30℃~ 220℃
Pressure：≦12㎏ / c㎡
Speed：≦12 m/s

Standard Materials：

Stationary Ring ：Ceramic / SIC / TC
Rotary Ring：Carbon / SIC / TC
Secondary Seal：VITON / NBR / EPDM
Metal parts：SUS304 / SUS316

Applications：

◆ All types of rotating equipment
◆ Centrifugal pump
◆ Agitators
◆ Most general and light chemical duties
