ERVING SEAL ENTERPRISES CO., LTD

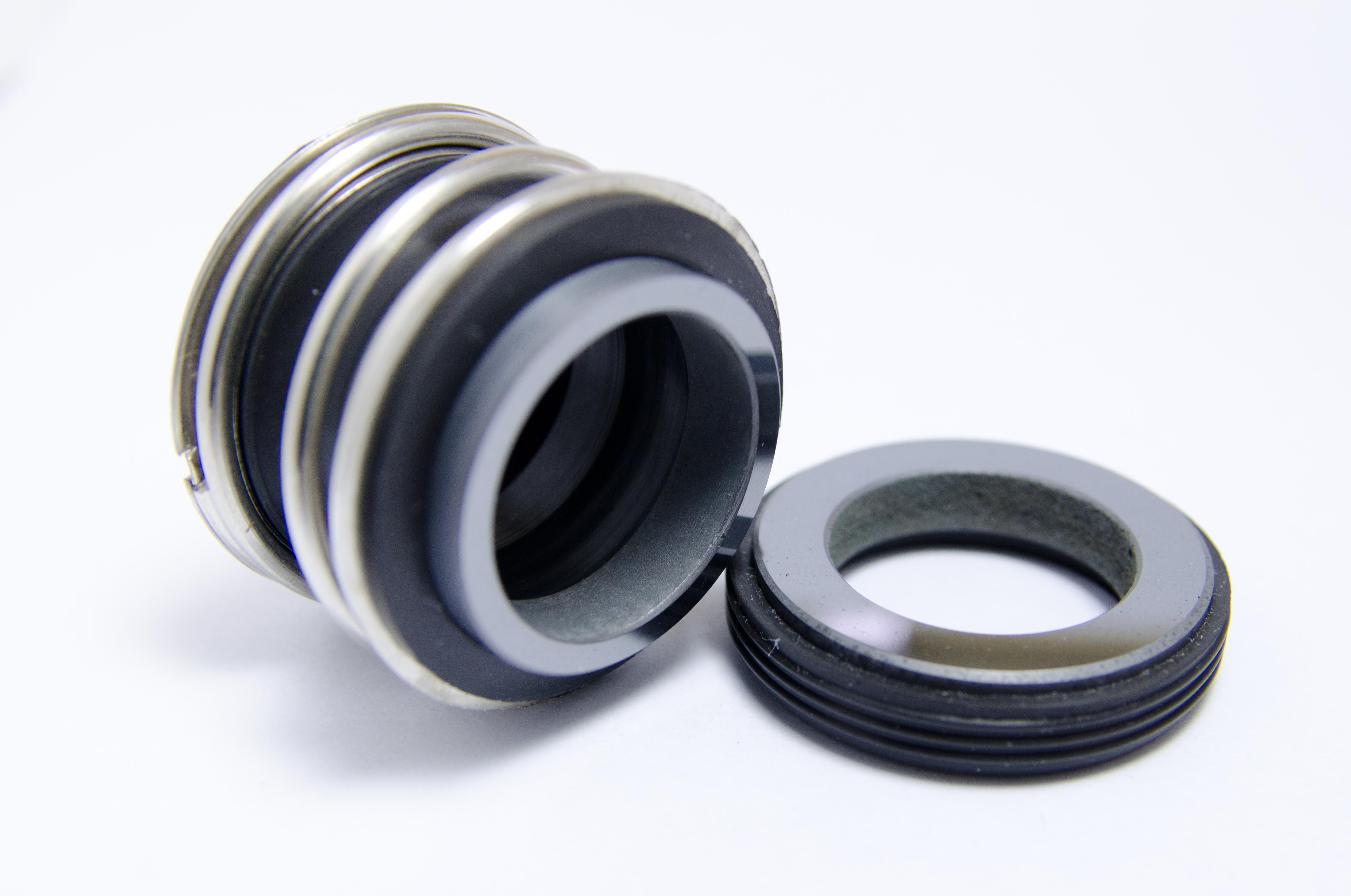

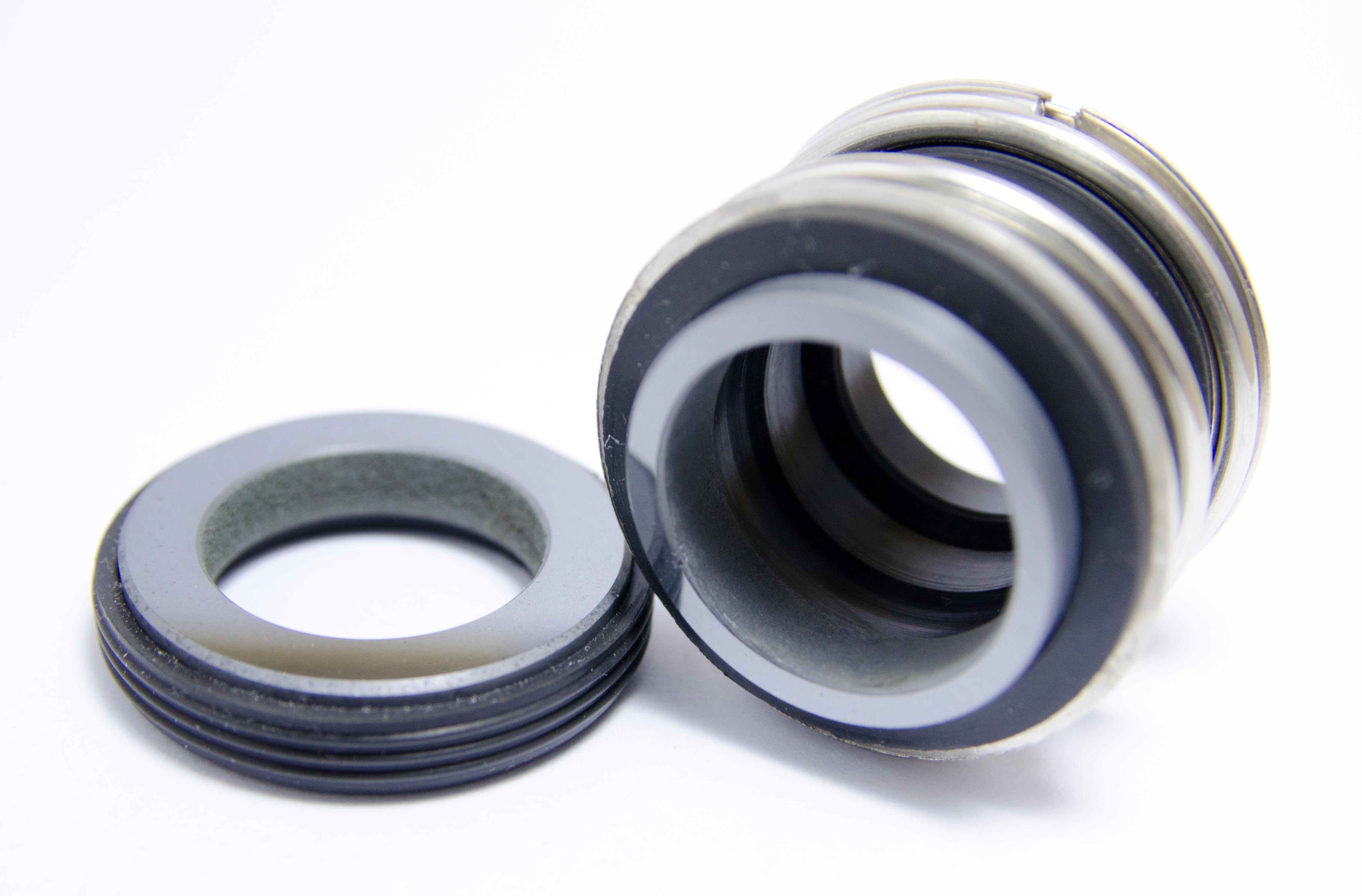

d | D3 | D7 | D12 | D16 | L1 | L2 | L3 | L4 | L9 | L14 | L28 | L29 |
10 | 22 | 21 | 19.2 | 24.6 | 14.5 | 25 | 25.9 | 33.4 | 10 | 6.5 | 6.5 | 9 |
12 | 24.5 | 23 | 21.6 | 27.8 | 15 | 25 | 25.9 | 33.4 | 10 | 5.5 | 6.5 | 9 |
14 | 28 | 25 | 24.6 | 30.95 | 17 | 25 | 28.4 | 33.4 | 10 | 5.5 | 6.5 | 10.5 |
15 | 28 | 27 | 24.6 | 30.95 | 17 | 25 | 28.4 | 33.4 | 10 | 6.5 | 6.5 | 10.5 |
16 | 28 | 27 | 28 | 30.95 | 17 | 25 | 28.4 | 33.4 | 10 | 7.5 | 6.5 | 10.5 |
18 | 31.5 | 33 | 30 | 34.15 | 19.5 | 25 | 30 | 37.5 | 11.4 | 8 | 7.5 | 10.5 |
19 | 36.5 | 35 | 35 | 34.15 | 21.5 | 25 | 30 | 37.5 | 11.4 | 7.5 | 7.5 | 10.5 |
20 | 36.5 | 35 | 35 | 35.7 | 21.5 | 25 | 30 | 37.5 | 11.4 | 7.5 | 7.5 | 10.5 |
22 | 36.5 | 37 | 35 | 37.3 | 21.5 | 25 | 30 | 37.5 | 11.4 | 7.5 | 7.5 | 10.5 |
24 | 42 | 39 | 38 | 40.5 | 22.5 | 25 | 32.5 | 42.5 | 11.4 | 7.5 | 7.5 | 10.5 |
25 | 42 | 40 | 38 | 40.5 | 23 | 25 | 32.5 | 42.5 | 11.4 | 7.5 | 7.5 | 10.5 |
28 | 48.5 | 43 | 42 | 46.65 | 26.5 | 33 | 35 | 42.5 | 11.4 | 9 | 7.5 | 12 |
30 | 48.5 | 45 | 45 | 50.8 | 26.5 | 33 | 35 | 42.5 | 11.4 | 10.5 | 7.5 | 12 |
32 | 53 | 48 | 48 | 50.8 | 27.5 | 33 | 35 | 47.5 | 11.4 | 10.5 | 7.5 | 12 |
33 | 53 | 48 | 50 | 54 | 27.5 | 33 | 35 | 47.5 | 11.4 | 11 | 7.5 | 12 |
35 | 56.5 | 50 | 52 | 54 | 28.5 | 33 | 35 | 47.5 | 11.4 | 11 | 7.5 | 12 |
38 | 58.5 | 56 | 55 | 57.15 | 30 | 33 | 36 | 46 | 14 | 10.5 | 9 | 12 |
40 | 61.5 | 58 | 58 | 60.35 | 30 | 33 | 36 | 46 | 14 | 10.8 | 9 | 12 |
42 | 65 | 61 | 62 | 63.5 | 30 | 36 | 41 | 51 | 14 | 12 | 9 | 12 |
43 | 65 | 61 | 62 | 63.5 | 30 | 36 | 41 | 51 | 14 | 12 | 9 | 12 |
45 | 67.5 | 63 | 64 | 63.5 | 30 | 36 | 41 | 51 | 14 | 11.5 | 9 | 12 |
48 | 70 | 66 | 68.4 | 66.7 | 30.5 | 36 | 41 | 51 | 14 | 11.5 | 9 | 12 |
50 | 73.5 | 70 | 69.3 | 69.85 | 30.5 | 38 | 41 | 50.5 | 15 | 11.5 | 9.5 | 13.5 |
53 | 78 | 73 | 72.3 | 73.05 | 33 | 36.5 | 41 | 59 | 15 | 12.5 | 11 | 13.5 |
55 | 80.5 | 75 | 75.4 | 76.2 | 35 | 36.5 | 41 | 59 | 15 | 13.5 | 11 | 13.5 |
58 | 85 | 78 | 78.4 | 79.4 | 37 | 41.5 | 41 | 59 | 15 | 13.5 | 11 | 13.5 |
60 | 88 | 80 | 80.4 | 79.4 | 38 | 41.5 | 41 | 59 | 15 | 13.5 | 11 | 13.5 |
65 | 93 | 85 | 85.4 | 92.1 | 40 | 41.5 | 49 | 69 | 15 | 13 | 11 | 16 |
68 | 96 | 90 | 91.5 | 95.25 | 40 | 41.2 | 49 | 68.7 | 18 | 13.7 | 11.5 | 16 |
70 | 99 | 92 | 92 | 95.25 | 40 | 48.7 | 49 | 68.7 | 18 | 13 | 11.5 | 16 |
75 | 106.5 | 97 | 99 | 101.6 | 40 | 48.7 | 52 | 68.7 | 18 | 14 | 11.5 | 16 |
80 | 111.5 | 105 | 104 | 114.3 | 40 | 48 | 56 | 78 | 18.3 | 15 | 12 | 20 |
85 | 119.5 | 110 | 109 | 117.5 | 41 | 46 | 56 | 76 | 18.3 | 15 | 14 | 20 |
90 | 126.5 | 115 | 114 | 123.85 | 45 | 51 | 59 | 76 | 18.3 | 15 | 14 | 20 |
95 | 131.5 | 120 | 120.3 | 127 | 46 | 51 | 59 | 76 | 17.3 | 16 | 14 | 20 |
100 | 136.5 | 125 | 123.3 | 133.35 | 47 | 51 | 62 | 76 | 17.3 | 16 | 14 | 20 |
Operation Conditions:
Temperature:-30℃~ 220℃
Pressure:≦12㎏ / c㎡
Speed:≦12 m/s
Standard Materials:
Stationary Ring :Ceramic / SIC / TC
Rotary Ring:Carbon / SIC / TC
Secondary Seal:VITON / NBR / EPDM
Metal parts:SUS304 / SUS316
Applications:
◆ All types of rotating equipment
◆ Centrifugal pump
◆ Agitators
◆ Most general and light chemical duties
Specification:
Temperature:-30℃~220℃
Pressure:≦12kg/c㎡
Speed:≦12m/sec
